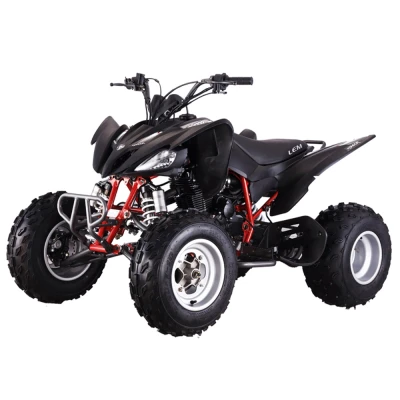

The front suspension with a double A-arm design on the PENTORA 250 allows for improved performance, reducing unevenness and enhancing steering control.
The front and rear hydraulic disc brakes on the PENTORA 250 provide excellent braking performance, allowing quick stops at high speeds.
The PENTORA 250 is equipped with 10-inch front and 9-inch rear wheels that provide excellent traction and performance on various surfaces, offering strong lateral support during driving, precise road feedback, and improved driving texture.
The dual halogen "fox eye" headlights provide exceptional visibility and have high penetrating power, allowing the driver to maintain a clear line of sight even when driving in rainy or foggy weather.
The PENTORA 250's 12 hp engine can reach a top speed of 90 km/h while maintaining stability at high speeds, delivering excitement and thrills to riders.
ATV is not intended for driving on public roads, snow and swamps because it does not have sufficient power, and the drive is on the rear axle without a differential mechanism.
Engine type: | LC166FMM single-cylinder, four-stroke |
Cooling: | Air |
Cylinder bore and stroke: | 65.5x66.2 mm |
Displacement: | 250cc |
Compression ratio: | 9:1 |
Carburetor: | PZ30 |
Power: | 21 hp |
Maximum torque: | 17 Nm / 6000 rpm |
Clutch: | Wet multi-plate + automatic centrifugal |
Transmission: | Chain drive |
Vehicle size (LxWxH): | 1625x1060x1065 mm (64x41.7x41.9 inches) |
Wheelbase: | 1090 mm (42.9 inches) |
Seat height: | 790 mm (31.1 inches) |
Ground clearance: | 135 mm (5.3 inches) |
Turning radius: | 2950 mm (9.7 feet) |
Box size (LxWxH): | 1460x880x860 mm (57.4x34.6x33.9 inches) |
Weight: | 149 kg |
Total weight with box: | 177 kg |
Fuel tank: | 9 liters |
Load capacity: | 100 kg |
Front suspension: | Independent MacPherson suspension |
Rear suspension: | Single independent suspension |
Front brakes: | Hydraulic disc brakes |
Rear brakes: | Hydraulic disc brakes |
Wheels: | 20x7-10 front / 19x10-9 rear |
Speed: | 75 km/h |
